Discover the cutting-edge VOx 12µm imaging sensor, boasting an industry-leading <20mK NETD for unparalleled target distinction. Even in pitch darkness, experience crystal-clear, detailed images.
Easily Replaceable Battery
Empowered by a conveniently replaceable 18650 battery, ensuring uninterrupted usage.

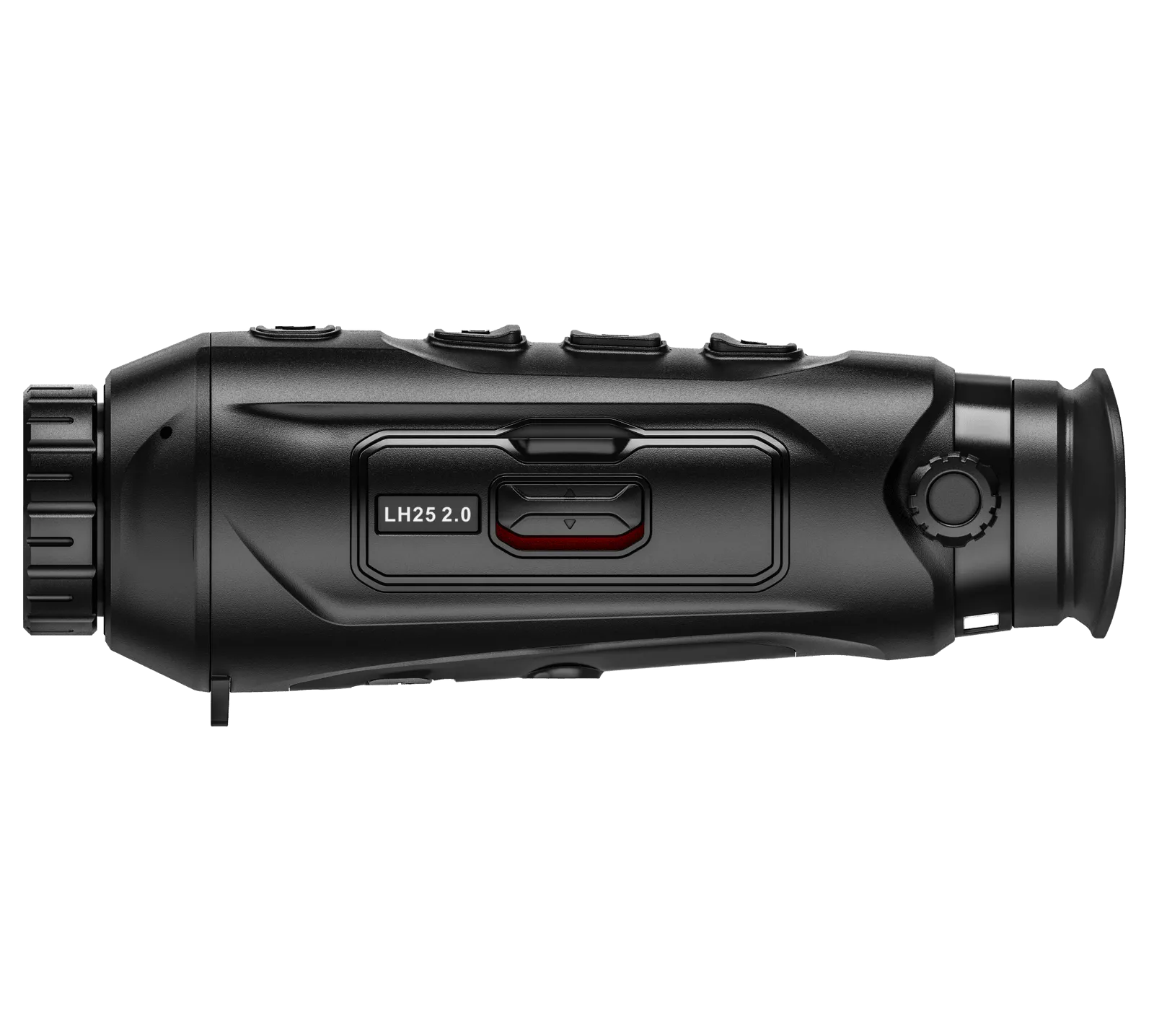

Newly Designed Ergonomic Housing
Experience enhanced usability with the newly designed Lynx 2.0. Featuring high-grip rubber overmoulding, it offers a comfortable palm feel and accessible buttons, facilitating effortless one-handed operation in any field environment.
| SPECIFICATIONS | LH25 2.0 |
| Sensor | 384x288 12µm |
| Objective Lens (Focal Length) | 25 mm |
| Detection Distance | 1200 m |
| SENSOR | |
| Resolution, pixels | 384x288 |
| Pixel pitch, µm | 12µm |
| Frame rate, Hz | 50 Hz |
| NETD | <20mK |
| LENS SPECIFICATIONS | |
| Objective lens | F1.0 |
| Magnification (Optical) |
2.4x |
| Magnification (Digital) | 1x, 2x, 4x, 8x (19.2x) |
| Field of view |
10.5° x 7.9° |
| Display | |
| Type | 10mm, OLED |
| Resolution, Pixels | 1024 x 768 |
| Colour Palettes | Black Hot, White Hot, Red Hot, Fusion |
| VIDEO | |
| Storage | 16 GB |
| Image Capture | Yes |
| Video Record | Yes |
| Standby Mode | Yes |
| PIP | Yes |
| ADDITIONAL FEATURES | |
| Hot Tracking | Yes |
| Wi-Fi hot spot | Yes |
| HIKMICRO Sight App Support | Yes |
| ENVIRONMENTAL | |
| Rated Protection | IP67 |
| Operating temperature range | -30 °C to 55 °C |
| WEIGHT & SIZE | |
| Dimensions, mm | 172mm x 56mm x 60.8mm |
| Weight | 275g (without battery) |
| POWER SUPPLY | |
| Battery type | Removable 18650 battery |
| Operating time on battery (WiFi & Hot tracking disabled) |
6.5 Hours |
| Charging interface | External charger (Supplied) |
| Warranty Period Main Unit |
3 Years, 10 Years for Sensor |
